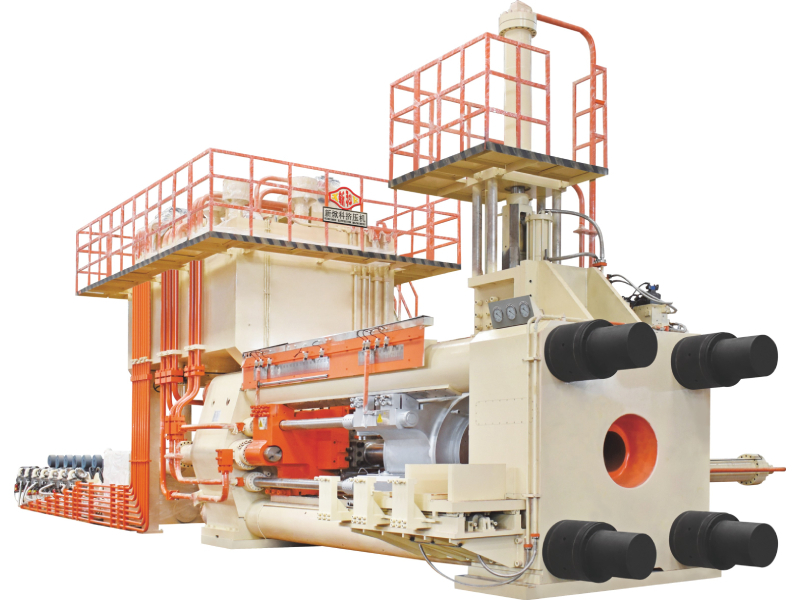

3600T (12inch) Copper and Aluminum Profile Extrusion Press
Technical Parameters
· Nominal force (metric ton/us ton): 3600MT (4000UST)
· Type: Short stroke
· Billet size (mm): Φ305×1300
· Billet size (Inch): 12
· Main piston diameter: Φ1280
· Discharge port size (REF): Φ380×450
Key Features
Strong and Stable Structure
The machine features a heavy-duty frame design to ensure stable operation under high pressure, suitable for continuous extrusion of large profiles.
Multi-Material Capability
Supports extrusion of various non-ferrous materials:
· Aluminum alloys (6000 & 7000 series)
· Copper and copper alloys
· Magnesium alloys
· Zinc alloys (special applications)

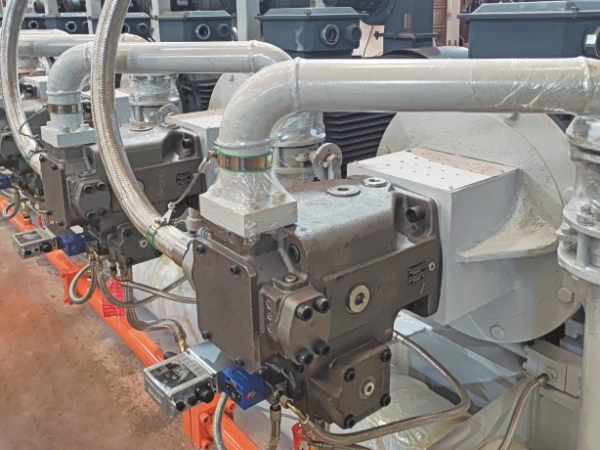

Efficient Hydraulic System
Advanced hydraulic control ensures:
· Stable pressure output
· Fast cycle response
· Reduced energy consumption
· Long-term operational reliability

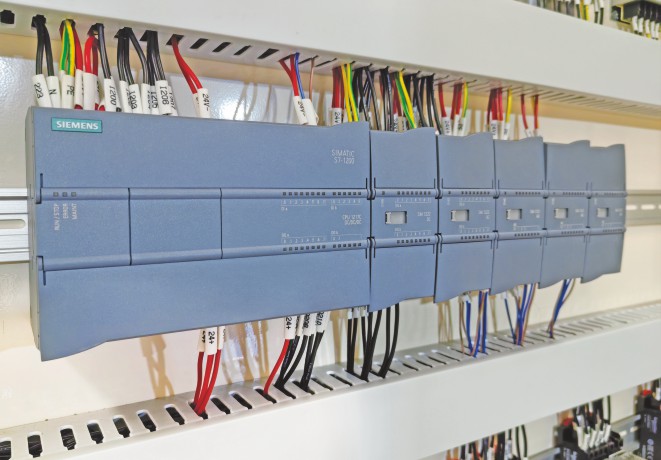

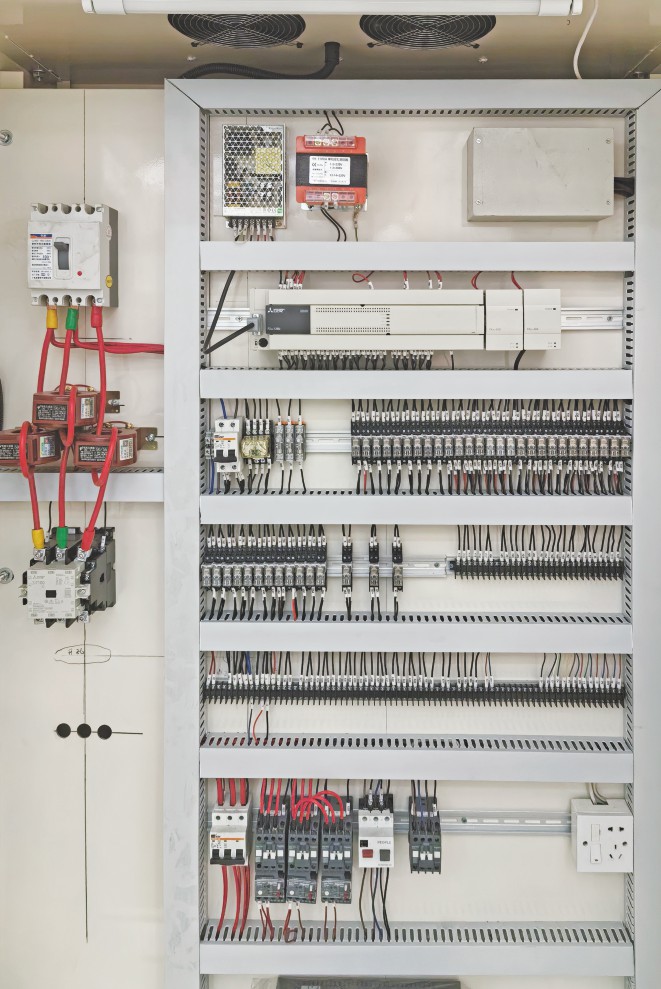

Intelligent Control System
Equipped with PLC automation for:
· Automatic / semi-automatic operation
· Precise speed and pressure control
· Stable extrusion quality
· Easy operation and maintenance
Technical Highlights
· 3600T extrusion force capacity
· 12 inch container size
· Heavy-duty industrial structure
· Energy-efficient hydraulic system
· High-precision die alignment
· Suitable for continuous production
Applications
Aluminum Profiles
· Industrial structural profiles
· Solar mounting systems
· Automotive components
· Heat sink profiles
· Medium-large architectural profiles
Copper Profiles
· Copper busbars
· Electrical transmission parts
· Conductive connectors
· Power system components
Industrial Applications
· Renewable energy systems
· Transportation structures
· Industrial machinery frames
· Engineering construction profiles
