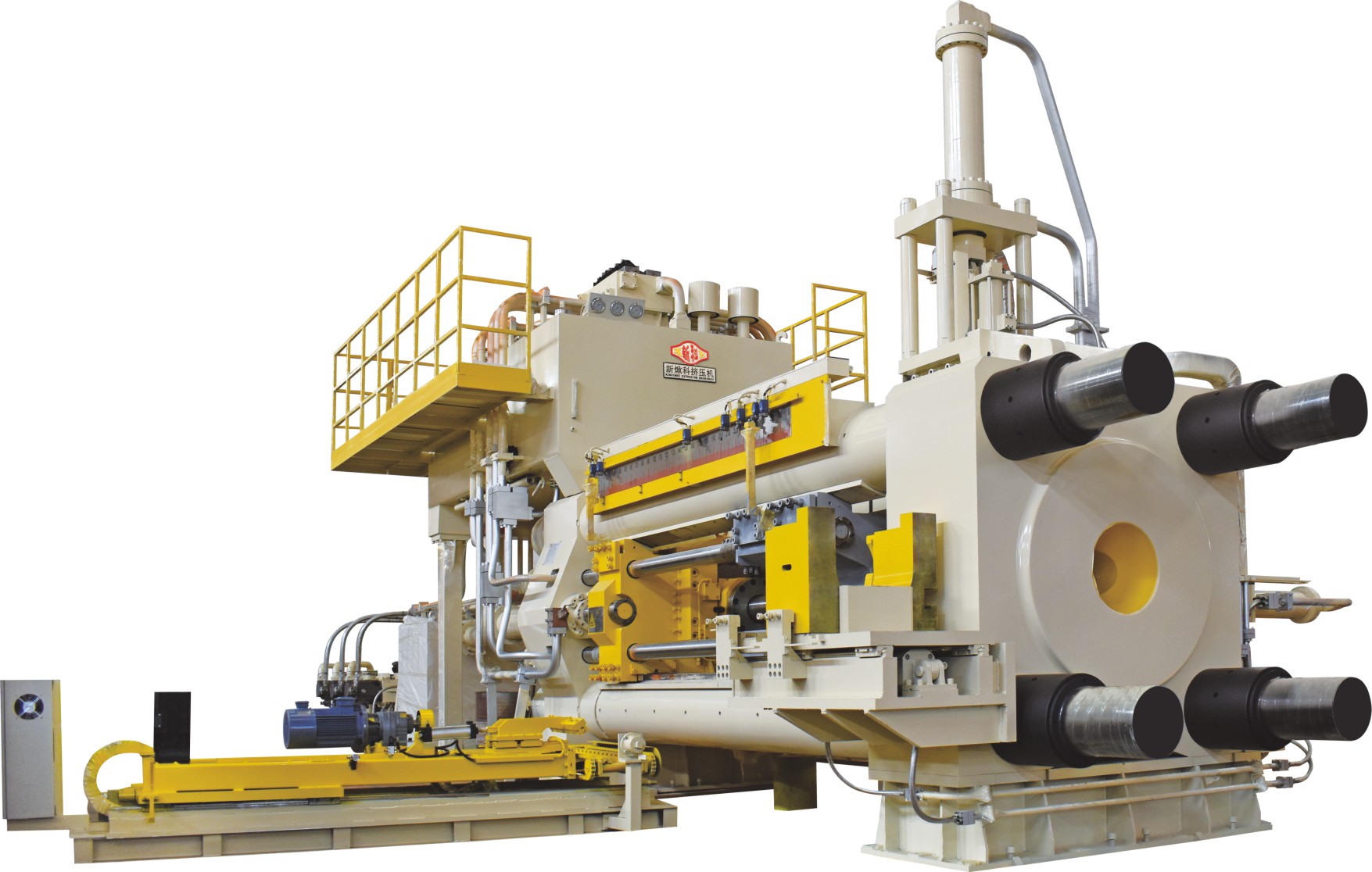

2000T (8inch) Copper and Aluminum Profile Extrusion Press
Technical Parameters
· Nominal force (metric ton/us ton): 2000MT (2200UST)
· Type: Short stroke
· Billet size (mm): Φ203×1100
· Billet size (Inch): 8
· Main piston diameter: Φ950
· Discharge port size (REF): Φ280×340
Product Overview
The 2000T (8 inch) copper and aluminum profile extrusion press is a medium-duty and highly versatile extrusion machine designed for stable and efficient production of aluminum and copper profiles. It is widely used in architectural, industrial, and light engineering applications, offering a strong balance between productivity, energy efficiency, and investment cost.
This model is one of the most popular choices for mid-scale extrusion factories.
Key Features
Stable Medium-Duty Structure
The machine is built with a reinforced frame design to ensure stable operation under continuous working conditions, suitable for medium-scale profile production.
Multi-Material Processing Capability
Supports extrusion of various non-ferrous materials, including:
· Aluminum alloys (mainly 6000 series)
· Copper and copper alloys
· Magnesium alloys (optional configuration)
· Zinc alloys (light-duty applications)
Efficient Hydraulic System
The hydraulic system is designed for smooth and stable operation, offering:
· Consistent extrusion pressure
· Fast cycle performance
· Energy-efficient operation
· Low maintenance requirements

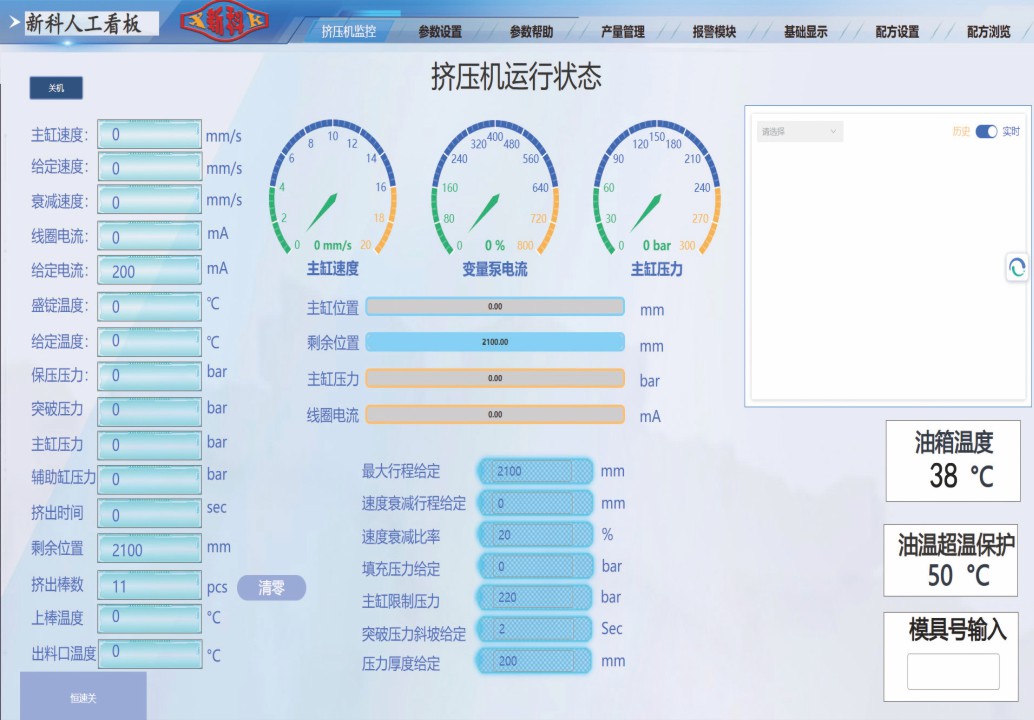

Intelligent PLC Control
Equipped with PLC automation system, enabling:
· Automatic and semi-automatic operation
· Precise pressure and speed control
· Stable production quality
· Simple operation interface
Technical Highlights
· 2000T extrusion force capacity
· 8 inch container size
· Medium-duty industrial frame design
· High-precision die alignment system
· Energy-saving hydraulic circuit
· Suitable for continuous production lines
Applications
Aluminum Profiles
* Window and door systems
* Architectural aluminum profiles
* LED lighting housings
* Heat sink profiles
* Furniture aluminum components
* Light industrial structural profiles
Copper Profiles
· Copper busbars
· Electrical connectors
· Conductive components
· Power distribution parts
Industrial Applications
· Building construction materials
· Electrical and electronics industry
· Light industrial manufacturing
l Renewable energy components
