Choosing between a direct vs. indirect extrusion press for copper alloy profiles is not simply a question of which machine generates more force. The right choice depends on alloy behavior, profile dimensions, production volume, downstream processing, and cost per accepted kilogram.
My starting point for evaluating either system is the same: define the product before specifying the press. Direct extrusion generally offers greater manufacturing flexibility. Indirect extrusion reduces billet-to-container sliding friction and can improve process consistency, but introduces tooling and dimensional constraints. These differences matter more than a headline tonnage rating.
For Xinxinke Co., Ltd., a manufacturer with more than 30 years of experience in copper and aluminum extrusion equipment, this comparison provides a practical framework for discussing customized production requirements.
The defining difference is friction—specifically, whether the billet slides against the container during extrusion.
In direct extrusion, the ram pushes a heated billet toward a stationary die. Metal exits through the die in the same general direction as ram travel.
Because the billet moves relative to the container, friction adds to the deformation load. As extrusion progresses, the billet becomes shorter and its contact area with the container decreases. Consequently, the force requirement changes through the stroke.
Direct extrusion offers a comparatively straightforward arrangement and flexibility in profile manufacturing. However, changing force and thermal conditions can affect die deflection, dimensions, and microstructure along the extruded length.
In indirect extrusion, the billet remains stationary relative to the container. In a common arrangement, a die mounted on a hollow stem advances into the billet, and the extrusion passes back through the stem.
Eliminating relative sliding between billet and container removes that particular friction contribution. It does not eliminate die friction, deformation heating, or every source of temperature variation.
The hollow stem must support the die while allowing the product to pass through. This creates an important restriction on the available profile envelope.
| Selection factor | Direct extrusion press | Indirect extrusion press |
|---|---|---|
| Metal flow | Same general direction as ram travel | Opposite die-stem advance in a common arrangement |
| Billet-container sliding | Present | Essentially eliminated during extrusion |
| Extrusion load | Includes container sliding resistance | Lower under otherwise comparable conditions |
| Force consistency | Changes as billet contact length decreases | Generally more uniform through the working stroke |
| Profile envelope | Fewer restrictions from a hollow extrusion stem | Restricted by stem passage and structural requirements |
| Billet surface preparation | Important for surface quality and process control | Particularly important because surface contamination can enter the extrusion |
| Product strategy | Flexible profile production | Consistency-focused production within machine limits |
| Selection priority | Product range and tooling flexibility | Stable processing and suitable product geometry |
These are process-level tendencies, not guaranteed outcomes. Copper-alloy performance must be established through alloy-specific engineering and trials; general extrusion principles alone cannot establish a production guarantee.
Lower extrusion load can create useful operating headroom. Depending on the alloy and tooling, that headroom may support a higher extrusion ratio, a different billet temperature, or increased speed.
However, it is unsafe to convert a general force advantage into a universal percentage saving. Billet dimensions, lubrication, alloy flow stress, die geometry, temperature, and speed all influence the result.
For purchasing decisions, request predicted force-versus-stroke curves for both processes using identical production assumptions. A comparison based on different billet temperatures or profile dimensions is not meaningful.
"Copper alloy" covers materials with different deformation and thermal behavior. A press proposal should therefore identify the actual grade rather than rely on a generic copper processing recipe.
Published research on thin-wall multichannel copper profiles reports extrusion at 700–750°C under essentially isothermal conditions. That is a process-specific example, not a recommended temperature range for every brass, bronze, or copper alloy.
The practical lesson is to qualify billet temperature, tooling temperature, speed, and cooling as an integrated process window. Copying a temperature from another alloy or profile can undermine an otherwise sound machine selection.
The indirect process generally produces a more consistent force history because billet-container sliding resistance does not change with billet length.
More stable loading can reduce changes in die deflection. Reduced variation in work input can also support more consistent temperature and metallurgical conditions along the extrusion.
These advantages are especially relevant when the downstream operation is sensitive to variation. Nevertheless, the mechanism should not be confused with a guaranteed tolerance: machine alignment, tooling, thermal control, and subsequent processing still require validation.
Direct extrusion should not be dismissed as a lower-quality alternative. Heavy-metal equipment manufacturers continue to offer direct extrusion presses as established production systems.
Its suitability depends on whether the complete process can achieve the required dimensions, surface condition, and output reliably. Where product variety or profile envelope dominates the specification, direct extrusion may offer the better overall fit.
The correct purchasing question is not "Which process is inherently superior?" It is "Which configured production line can repeatedly meet our acceptance criteria?"

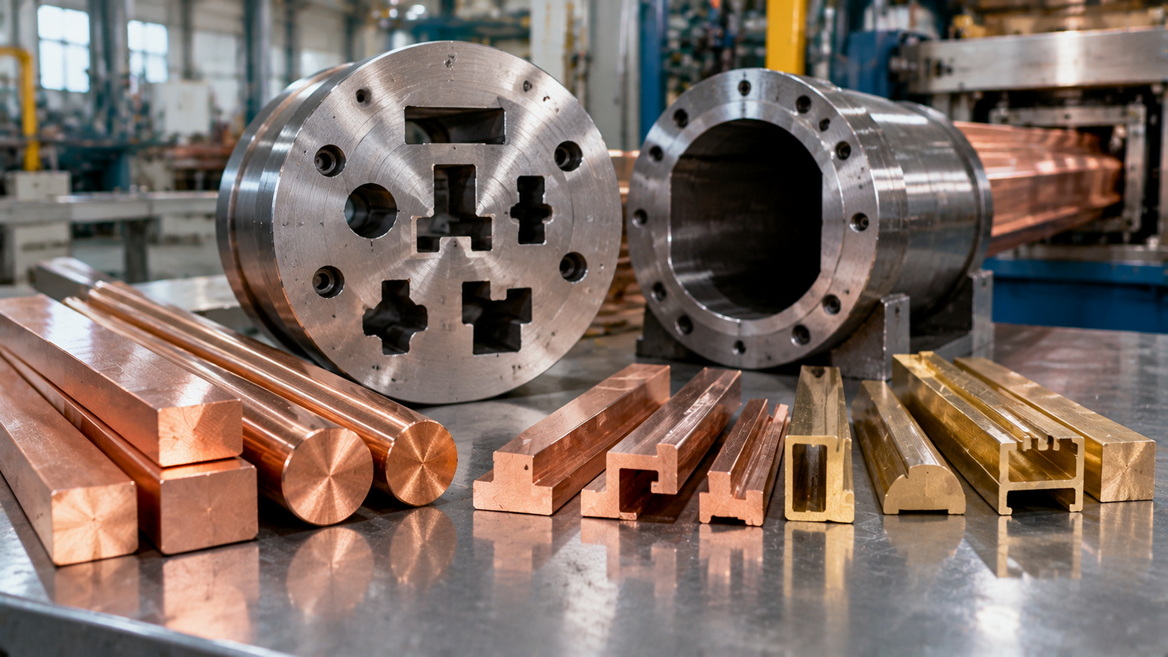

For an indirect copper extrusion press, checking profile width alone is insufficient. The entire cross-section must pass through the relevant tooling and stem arrangement.
During quotation review, request confirmation of:
- Maximum profile envelope.
- Available stem passage.
- Allowable extrusion load.
- Compatible billet dimensions.
- Practical tooling-change procedure.
A profile may be theoretically extrudable but incompatible with a particular machine's structural and passage limitations. This is why geometry should be reviewed before finalizing press capacity.
Indirect extrusion places particular importance on billet surface preparation. Oxides, dirt, oil, or an unsuitable as-cast layer can affect the extruded surface.
Billet preparation must therefore be included in the production concept—not treated as an unrelated upstream operation.
The quotation should clarify the expected billet condition, preparation method, inspection criteria, and handling practices. Any additional preparation cost belongs in the economic comparison. A lower extrusion load does not automatically mean a lower total production cost.
My preferred commercial comparison begins with saleable output, not theoretical press speed.
Use this planning relationship:
Cost per accepted kilogram = total production cost ÷ accepted output.
Include energy, labor, tooling, maintenance, billet preparation, rejected material, downtime, and relevant downstream operations. Keep the accounting boundary identical for both alternatives.
For example, one proposal may reduce press load while requiring additional billet preparation. Another may offer a lower purchase price but create greater downstream processing demands.
This is an evaluation framework, not a claim that either process always costs less. Populate it with supplier guarantees, measured trial results, and your actual operating costs.
Do not qualify the machine using only the easiest profile in the catalog.
Select products that represent the real operating challenge:
1. The alloy expected to require the highest load.
2. The largest profile envelope.
3. The most demanding dimensional specification.
4. The highest-volume production item.
5. A product with critical downstream requirements.
For each, define billet condition, target dimensions, inspection locations, accepted output, and permitted operating conditions.
This proposed matrix makes competing offers easier to compare. It also exposes whether a supplier's recommendation suits the full product portfolio or only a convenient demonstration part.

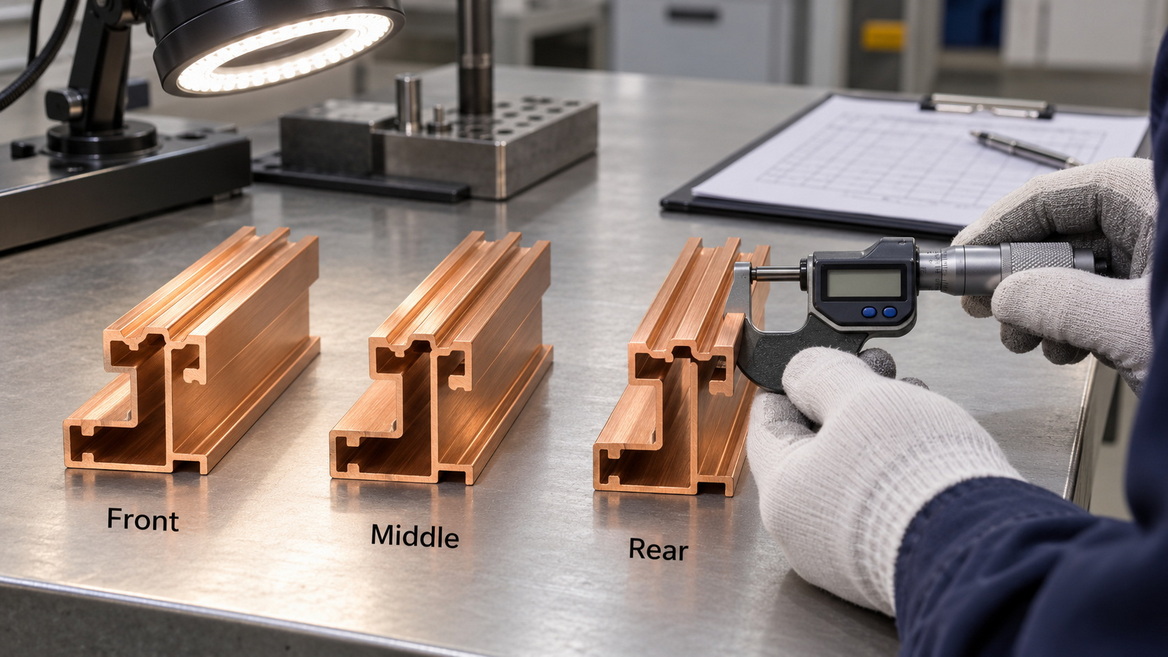

A single inspection sample cannot establish longitudinal consistency.
Specify samples from agreed positions near the front, middle, and rear of the usable extrusion. Record dimensions, surface condition, and whatever material properties the customer specification requires.
Where practical, connect those measurements to force, speed, and temperature records.
This approach tests the actual benefit being discussed: reduced process variation. It is more informative than accepting an unspecified statement that one press produces "better quality."

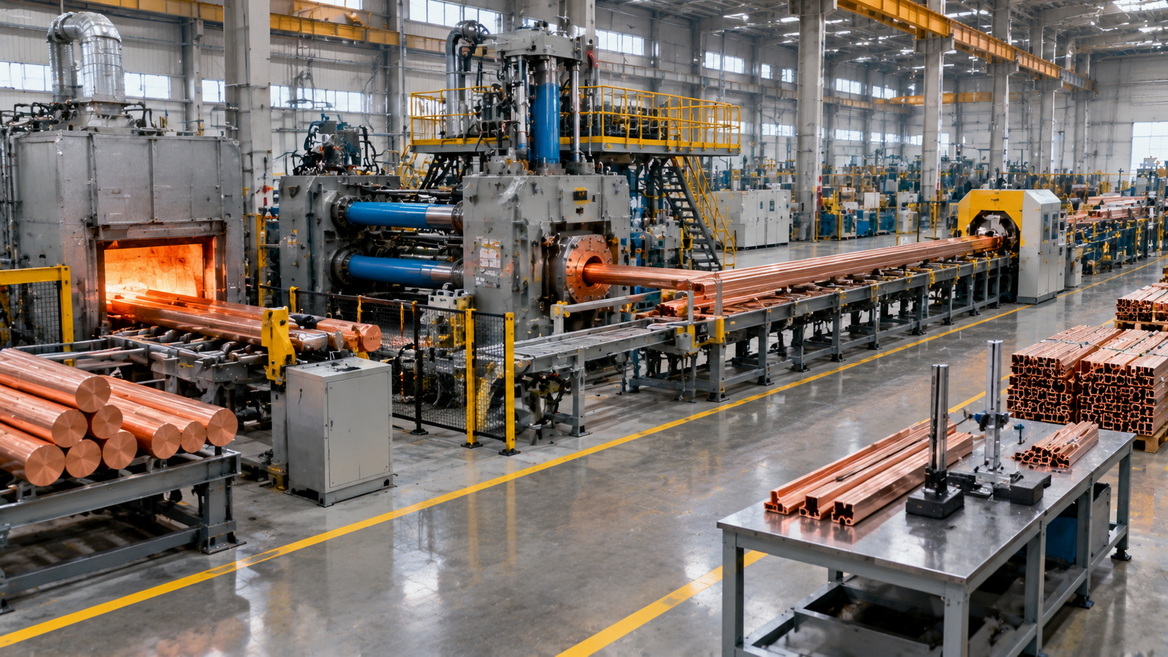

A copper alloy extrusion line is a coordinated system. Billet handling, heating, tooling exchange, extrusion, runout, cutting, and inspection must work together.
Heavy-metal extrusion suppliers offer integrated systems that extend beyond the press itself. For tube production, equipment arrangements can also include internal piercing and specialized guidance systems, illustrating how the final product determines the required configuration.
When comparing proposals, define the supplier's scope clearly:
- Which upstream and downstream machines are included?
- Who controls the interface between heating and extrusion?
- How are production recipes recorded?
- What training and maintenance documentation will be delivered?
- Which performance commitments apply to the complete line?
These questions turn a machine quotation into a usable manufacturing specification.
Direct extrusion deserves close consideration when the business prioritizes a varied product range, flexible profile manufacturing, or dimensions that conflict with an indirect stem passage.
Its comparatively straightforward process arrangement is an advantage, provided the specified line demonstrates the required product quality and operating performance.
Do not assume direct extrusion is automatically cheaper in every configuration. Compare actual equipment scope and lifecycle costs.
Indirect extrusion deserves close consideration when reduced sliding resistance and stable processing provide measurable value, and the intended profiles fit the machine's tooling envelope.
It can be particularly attractive where longitudinal consistency affects later processing. Established heavy-metal equipment literature also identifies indirect extrusion as a relevant route for brass production.
The recommendation should remain conditional on billet preparation, tooling feasibility, and alloy-specific trials—not on the process name alone.
No. It offers a friction-related advantage, but hollow-stem restrictions and billet surface requirements can outweigh that benefit. The preferred process depends on the product and production plan.
No. It eliminates relative sliding between the billet and container during extrusion. Friction at other interfaces and heat from metal deformation remain relevant.
Direct extrusion remains an established heavy-metal production route. Whether a specific profile is achievable depends on the alloy, geometry, tooling, machine configuration, and validated process conditions.
Lower extrusion load does not by itself establish lower total line energy. Request measurements covering the same production boundary, including heating, auxiliary equipment, and accepted output. Treat energy performance as a contractual test requirement rather than an assumed process benefit.
Provide alloy designations, profile drawings, tolerances, annual volumes, billet dimensions, downstream requirements, and available utilities. Include your most difficult products so the proposed configuration reflects real production needs.
